U-30T Pull Down Type Press
Main Technical Parameters:
|
Model |
U-30T |
|||
|
Capacity |
KN |
300 |
||
|
Stroke length |
MM |
20 |
25 |
30 |
|
Maximum SPM |
SPM |
600 |
550 |
500 |
|
Minimum SPM |
SPM |
180 |
180 |
180 |
|
Die height |
MM |
185-215 |
183-213 |
180-210 |
|
Die height adjustment |
MM |
30 |
||
|
Slider area |
MM |
550x400 |
||
|
Bolster area |
MM |
550x400x50 |
||
|
Bolster opening |
MM |
100x500 |
||
|
Main motor |
KW |
4kwx4P |
||
|
Accuracy |
|
JIS / JIS Special grade |
||
|
Total Weight |
KG |
2800 |
||
Main Features:
1.The structure adopts ductile iron technology QT700-2, with high rigidity, light structure and good thermal balance, etc.
2.Double linkage structure, the slide groove distance is as long as 800mm, improving the eccentric load capacity of the slider.
3.The sliding running structure adopts high quality alloy copper material combined with sliding bearing, with reasonable clearance control, high accuracy holding and silent
4.Reverse air pressure damping technology, smooth running, can be used with air vibration pads.
5.Servo die height adjustment with automatic mold locking system, small accuracy change in high-speed movement, easy to adjust and fast.
6.Human-machine interface microcomputer control, intelligent factory supporting access.

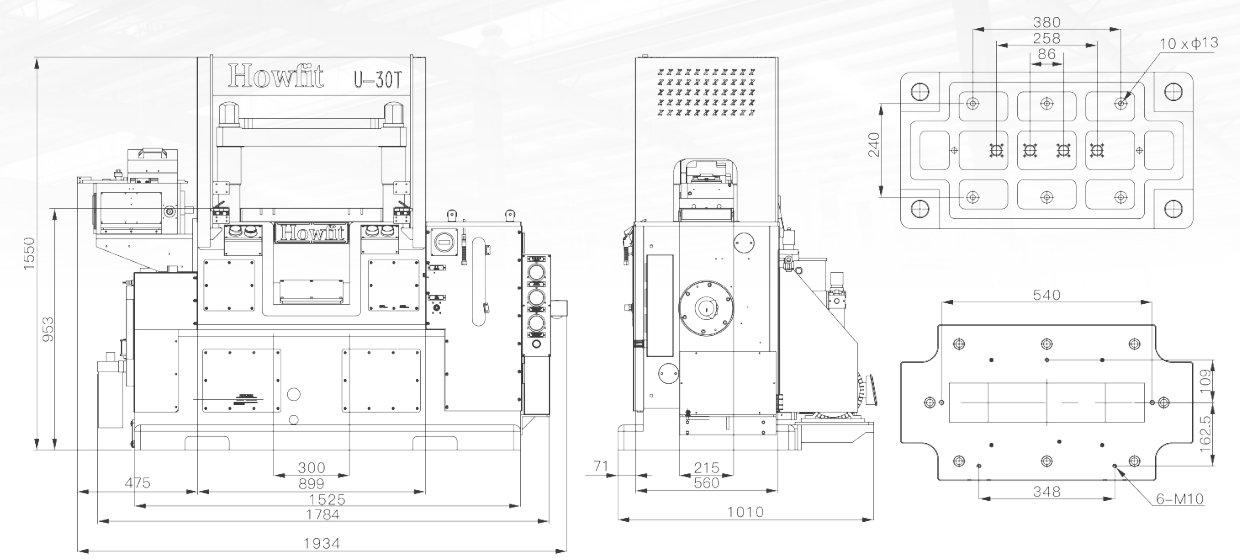

Dimension:
![TXQ4WJ]HR7B64QP{9(7`)`K](http://www.howfit-press.com/uploads/TXQ4WJHR7B64QP97K.png)
