HCW-65E Three Guide Column High Speed Power Press

Model HCW-65E
Capacity 650 KN
Die height adjustment 50 MM
Slider area 1200×400 MM
Bolster area 1400×540×130 MM
Bolster opening 180×1000 MM

Crafted from high-tensile cast iron and stress-relieved to ensure maximum rigidity and long-term accuracy, this press is ideal for continuous production.

Parameters
PRODUCT DETAIL

Model	HCW-65E
Capacity	KN	650
Stroke length	MM	40	50	60
Maximum SPM	SPM	350	300	280
Minimum SPM	SPM	180	180	180
Die height	MM	230-280	225-275	220-270
Die height adjustment	MM	50
Slider area	MM	1200×400
Bolster area	MM	1400×540×130
Bolster opening	MM	180×1000
Main motor	KW	11kw×6P
Accuracy		JIS/JIS Special grade

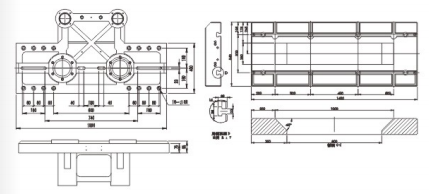

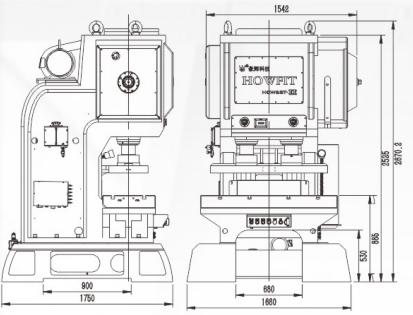

Dimension
PRODUCT DETAIL

HCW-65E Three Guide Column High Speed Power Press

Main Features
PRODUCT DETAIL

Manufactured from high tensile cast iron, stress relieved for maximum rigidity and long termaccuracy. It's the best for continuous production.
Double pillars and one plunger guide structure, manufactured from copper bush instead of traditional board for minimize friction. Work with forced lubrication to minimize thermal strainlife of the frame, upgrade stamping quality and extend service life of the machine.
Balancer device for optional to reduce vibration, make press more precision and stable.
It's more convenient to adjust the die with the die height indicator and the hydraulic locking device.
HMI is controlled by microcomputer. Display value and fault monitoring system. It is easy to operate.
Adopt die height adjustment motor, with die height indicator, easy to adjust the die height.

Main Components
PRODUCT DETAIL

control button

Control panel

Locking pump

Main Motor

Worktable and slide

Distribution Box

Press Products
PRODUCT DETAIL

HHC-65T Three Guide Column Automatic Punch Press Machine (1)

HHC-65T Three Guide Column Automatic Punch Press Machine (2)

HHC-65T Three Guide Column Automatic Punch Press Machine (3)

Auxiliary Equipment
PRODUCT DETAIL

Electrical cabinet

Continuously delivers metal coil in precise steps to the press or processing equipment during stamping operations

Decoiler

Used for uncoiling and recoiling sheet metal from coils, ensuring a smooth and steady material feed

Straightener

Flattens uneven sheet or strip material by passing it through upper and lower rollers to achieve the required flatness

Scrap chopper

Collects and removes scrap generated during the stamping process to maintain clean and efficient operation
