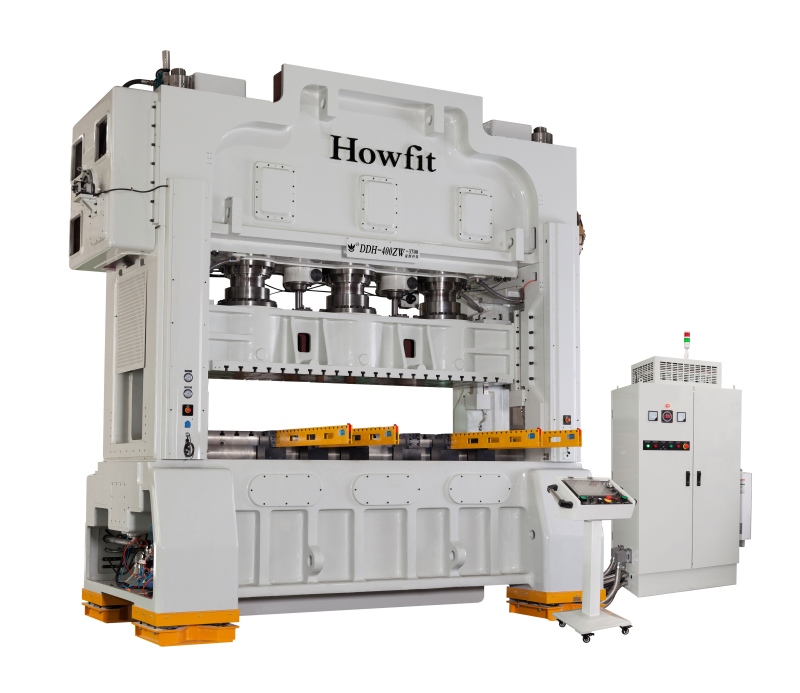

DDH400ZW-3700 400-Ton Center Three-Guide Column Eight-Sided Guide Sheet Metal Stamping Press Machine

Model DDH400ZW-3700
Capacity 4000 KN
Die height 500-6000 MM
Die height adjustment 100 MM
Main motor 90×6P KW
Upper mold lifting weight 3500 KG

1.Extra wide table: The 3700mm ultra-wide bloster can correspond to more complex pfocessing processes.
2.Stable bottom dead centerrepeat accuracy. : Reduce mold wear;ensure product accuracy while reducing the bottom dead center beat,extend the service life of the mold.

Parameters
PRODUCT DETAIL

Model		DDH400ZW-3700
Capacity	KN	4000
Stroke length	MM	40 / 50
Ability occurence point	MM	3.2
Maximum SPM	SPM	200
Minimum SPM	SPM	80
Die height	MM	500-600
Die height adjustment	MM	100
Slider area	MM	3700×1000
Bolster area	MM	3700×1200
Bed opening	MM	2700×400
Bolster opening	MM	640
Main motor	KW	90×6P
Upper mold lifting weight	KG	3500
Totall Weight	MM	250±50

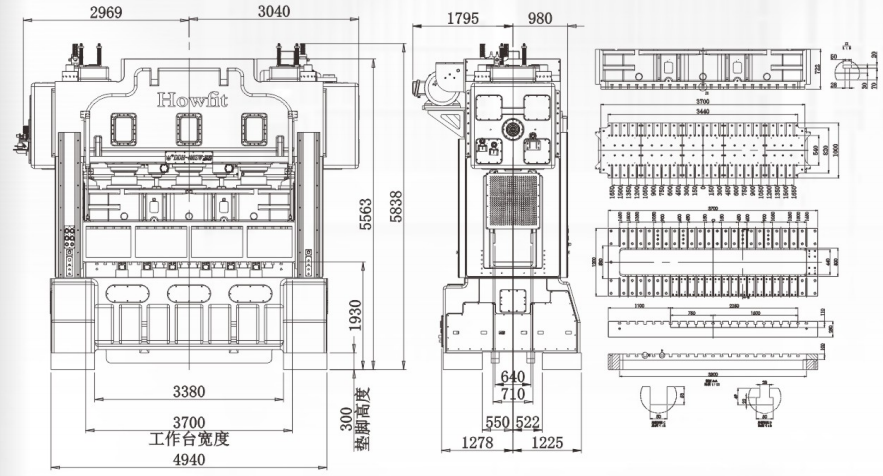

Dimension
PRODUCT DETAIL

DDH400ZW-3700 400-Ton Center Three-Guide Column Eight-Sided Guide Precision High Speed Press(1)

Main Features
PRODUCT DETAIL

Extra wide table: The 4200mm ultra-wide bloster can corespond to more complex pfocessing processes.
Stable bottom dead centerrepeat accuracy: Reduce mold wear,ensure product accuracy while reducing the bottom dead center beat,extend the service life of the mold.
Thermal variation is minimized: By applying the thermal control technology mastered in the peld of small high-speed presses,the thermal displacementis suppressed to the maximum extent.Thus improve the accuracy of the product.
High precision 8-sided slider guide: 8-sided needle rller slide guide rail,with ultra-high bearing capacity,long guide rail can withstand more eccentric load,convenient maintenance.

Main Components
PRODUCT DETAIL

Center guide pillar and slider

distribution box

Feeding port

Fixed seat for mold transfer arm

Locking pump

Lubricating oil pressure station

Model height display

oil cooler

workbench

Press Products
PRODUCT DETAIL

DDH-630T HOWFIT High Speed Power Press Machine (1)

DDH-630T HOWFIT High Speed Power Press Machine (2)

DDH-630T HOWFIT High Speed Power Press Machine (3)

Auxiliary Equipment
PRODUCT DETAIL

Electrical cabinet

Continuously delivers metal coil in precise steps to the press or processing equipment during stamping operations

Decoiler

Used for uncoiling and recoiling sheet metal from coils, ensuring a smooth and steady material feed

Straightener

Flattens uneven sheet or strip material by passing it through upper and lower rollers to achieve the required flatness

Scrap chopper

Collects and removes scrap generated during the stamping process to maintain clean and efficient operation
