HHC-65T Three Guide Column Automatic Punch Press Machine

Model HHC-65T
Capacity 850 KN
Die height adjustment 50 MM
Slider area 840×400 MM
Bolster area 930×580×130 MM
Bolster opening 150×740 MM

Mechanical Power Press Machine is used for blanking, punching, bending and forming of small and medium-sized single-engined thin steel plates and high-speed progressive die parts. It is characterized by high-precision, high-yield and high-stability continuous stamping operations.

Parameters
PRODUCT DETAIL

Model		HHC-65T
Capacity	KN		850
Stroke length	MM	30	40	50
Maximum SPM	SPM	600	550	500
Minimum SPM	SPM	200	200	200
Die height	MM	215-265	210-260	205-255
Die height adjustment	MM	50
Slider area	MM	840×400
Bolster area	MM	930×580×130
Bolster opening	MM	150×740
Main motor	KW	11.5kw×4P
Accuracy		JIS/JIS Special grade

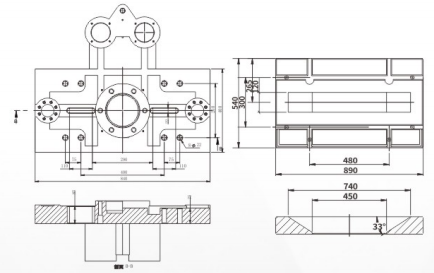

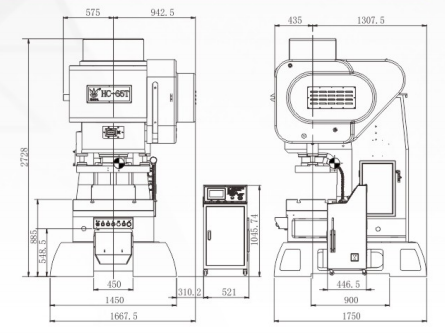

Dimension
PRODUCT DETAIL

HHC-65T Three Guide Column Automatic Punch Press Machine

Main Features
PRODUCT DETAIL

The bed is made of high strength cast iron with internal stress relief, which makes the material stable and accuracy unchanged and most suitable for continuous stamping production.
The fixed guide pillars on both sides of the slider are added to the traditional slider structure to make the slider have better resistance to deflection load and reduce the wear on one side, which is suitable for the use of large dies in long processes.
The die adjustment is equipped with die height display and hydraulic locking device, which is convenient for die adjustment operation.
Human-machine interface microcomputer control, value, fault monitoring system screen display for easy operation.
Adopt die height adfustment motor, with die height indicator,easy to adjust the die height.

Main Components
PRODUCT DETAIL

control button

distribution box

feeder

instrument box

Lubricate the material to the oil tank

motor

power system

slider

work light

Press Products
PRODUCT DETAIL

HHC-65T Three Guide Column Automatic Punch Press Machine (1)

HHC-65T Three Guide Column Automatic Punch Press Machine (2)

HHC-65T Three Guide Column Automatic Punch Press Machine (3)

Auxiliary Equipment
PRODUCT DETAIL

Electrical cabinet

Continuously delivers metal coil in precise steps to the press or processing equipment during stamping operations

Decoiler

Used for uncoiling and recoiling sheet metal from coils, ensuring a smooth and steady material feed

Straightener

Flattens uneven sheet or strip material by passing it through upper and lower rollers to achieve the required flatness

Scrap chopper

Collects and removes scrap generated during the stamping process to maintain clean and efficient operation
