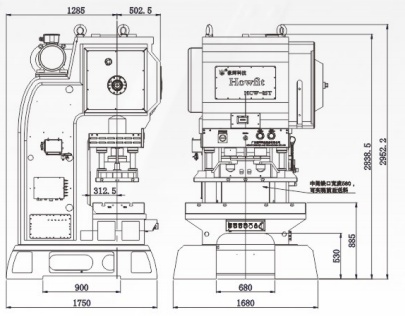

HCW-85E Three Guide Column High Speed Power Press

Short Description:

1.Manufactured from high tensile cast iron, stress relieved for maximum rigidity and long termaccuracy. It’s the best for continuous production.
2.Double pillars and one plunger guide structure, manufactured from copper bush instead of traditional board for minimize friction. Work with forced lubrication to minimize thermal strainlife of the frame, upgrade stamping quality and extend service life of the machine.

Send email to us

Product Detail

Product Tags

Main Technical Parameters:

Model		HCW-85E
Capacity	KN	850
Stroke length	MM	30 40	50
Maximum SPM	SPM	400 350	300
Minimum SPM	SPM	200 200	200
Die height	MM	375-425 370-420	365-415
Die height adjustment	MM	50
Slider area	MM	1200×500

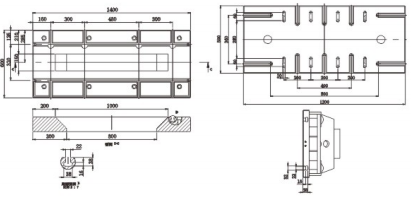

Bolster area	MM	1400×600×130
Bolster opening	MM	150×1000
Main motor	KW	18.5kw×4P
Accuracy		JIS/JIS Special grade

Main Features:

1.Manufactured from high tensile cast iron, stress relieved for maximum rigidity and long termaccuracy. It's the best for continuous production.
2.Double pillars and one plunger guide structure, manufactured from copper bush instead of traditional board for minimize friction. Work with forced lubrication to minimize thermal strainlife of the frame, upgrade stamping quality and extend service life of the machine.
3.Balancer device for optional to reduce vibration, make press more precision and stable.
4.It's more convenient to adjust the die with the die height indicator and the hydraulic locking device.
5.HMI is controlled by microcomputer. Display value and fault monitoring system. It is easy to operate.
6.Adopt die height adjustment motor, with die height indicator, easy to adjust the die height.
