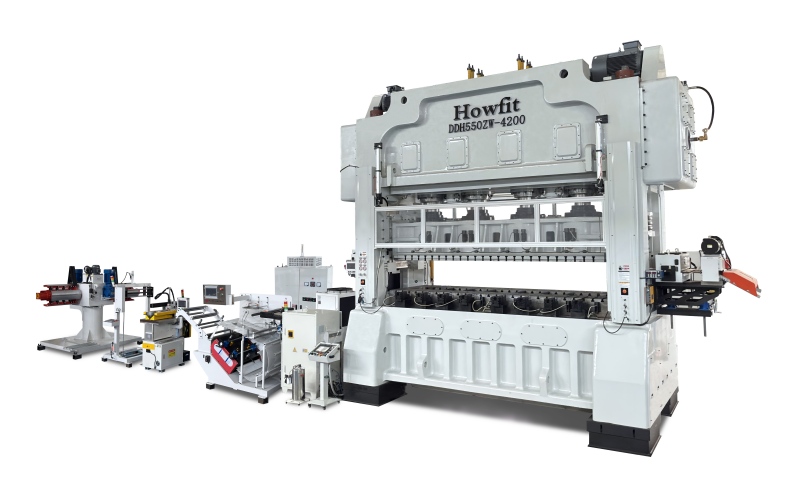

DDH550ZW-4200 400-Ton Center Three-Guide Column Eight-Sided Guide High-Speed Precision Press400

Short Description:

1.Extra wide table

The 4200mm ultra-wide bloster can corespond to more complex pfocessing processes.

2.Stable bottom dead centerrepeat accuracy

Reduce mold wear,ensure product accuracy while reducing the bottom dead center beat,extend the service life of the mold.

Send email to us

Product Detail

Product Tags

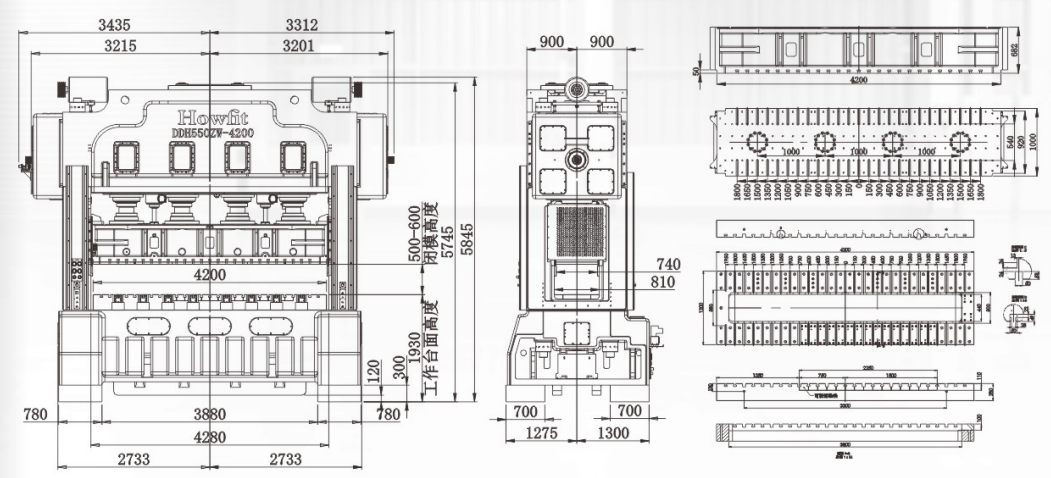

Main Technical Parameters:

Model		DDH550ZW-4200
Capacity	KN	5500
Stroke length	MM	50
Ability occurence point	MM	3.2
Maximum SPM	SPM	200
Minimum SPM	SPM	80
Die height	MM	500-560
Die height adjustment	MM	100
Slider area	MM	4200×1000
Bolster area	MM	4200×1300
Bed opening	MM	3800×500
Bolster opening	MM	740
Main motor	KW	45×6P 2台
Upper mold lifting weight	KG	4000
Total Weight	MM	350±50

Main Features:

1.Extra wide table

The 4200mm ultra-wide bloster can corespond to more complex pfocessing processes.

2.Stable bottom dead centerrepeat accuracy

Reduce mold wear,ensure product accuracy while reducing the bottom dead center beat,extend the service life of the mold.

3.Thermal variation is minimized

By applying the thermal control technology mastered in the peld of small high-speed presses,the thermal displacementis suppressed to the maximum extent.Thus improve the accuracy of the product.

4.High precision 8-sided slider guide

8-sided needle rller slide guide rail,with ultra-high bearing capacity,long guide rail can withstand more eccentric load,convenient maintenance.
