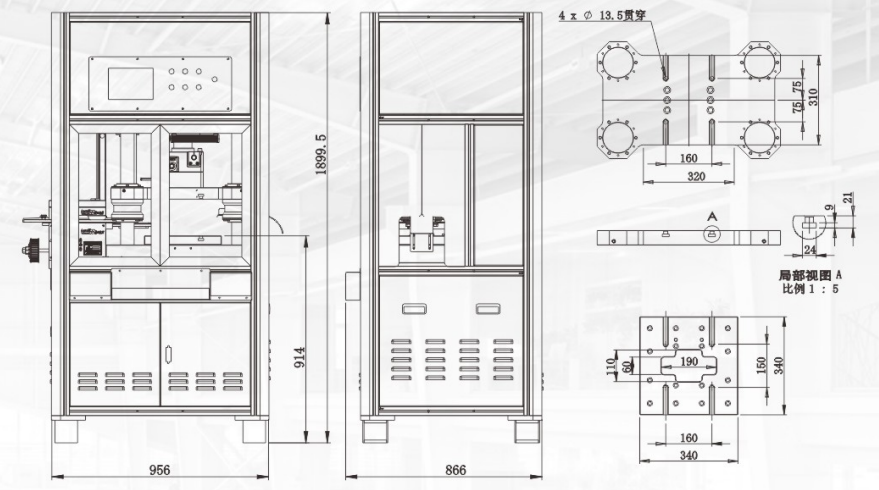

HSF-5T OAM-30T High Speed Precision Mini Type Servo Press

Model HSF-5T
Capacity 50 KN

1.High precision and stability
Optimize the mechanical structure to enhance the stamping stability.The servo motor is directly driven,with an accuracy of±0.005mm,suitable for micro-level precision stamping.
2.Lightweight structure
The high-strength aluminum alloy frame and modular design,compact layout reduces Boor space by 30%,meeting the load requirements of 1.5-3 tons per square meter for conventional second-Boor or above factory buildings.
3.Customized service
We offer customized services,providing you with a one-stop metal forming solution to fully meet your production requirements.

Parameters
PRODUCT DETAIL

Model		HSF-5T
Capacity	KN	50
Stroke length	MM	5-25
Maximum SPM	SPM	500
Minimum SPM	SPM	5
Die height	MM	150-200
Die height adjustment	MM	50
Slider area	MM	340W×310D
Bolster area	MM	310W×310D
Bed opening	MM	200W×80D
Main motor	KW	5
Accuracy		JIS/JIS Special grade
