H-300T 4 Post Guide and 2 Plunger Guide Gantry Type Precision Press

Model H-300T
Capacity 3000 KN
Die height adjustment 50 MM

The 300T gantry type high speed stamping press is built with a high-strength cast iron frame. Precise temperature control, tempering, and extended natural aging eliminate internal stresses, allowing the bed to achieve peak mechanical performance.

Parameters
PRODUCT DETAIL

Model		H-300T
Capacity	KN	3000
Stroke length	MM	30
Maximum SPM	SPM	450
Minimum SPM	SPM	150
Die height	MM	400-450
Die height adjustment	MM	50
Bolster area	MM	2300×1000
Slider area	MM	2300×900
Bolster opening	MM	1800×300
Main motor	KW	55 4P

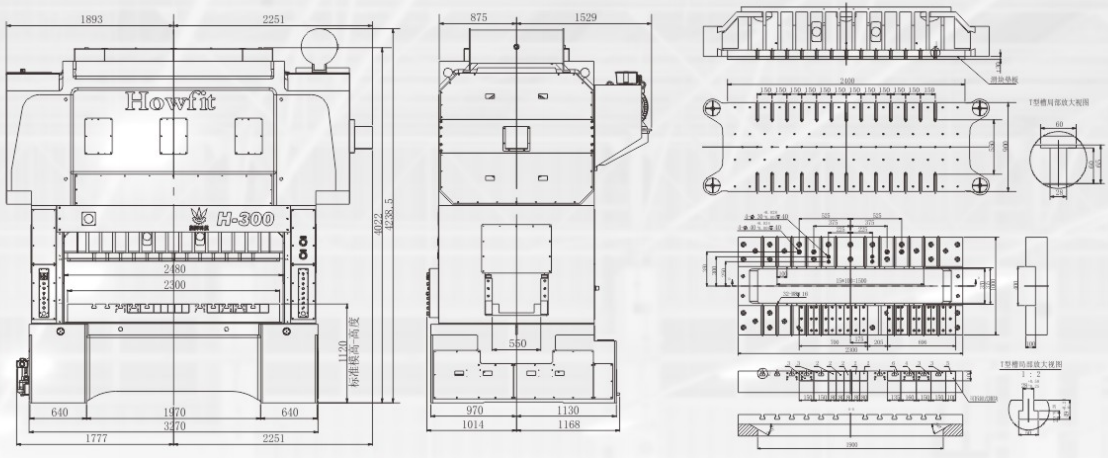

Dimension
PRODUCT DETAIL

H-300T 4 Post Guide and 2 Plunger Guide Gantry Type Precision Press(1)

Main Features
PRODUCT DETAIL

The split gantry structure prevents the problem of opening of the machine bodyduring loading and realizes the processing of high precision products.
The crank shaft is forged and shaped by alloy steel and then machined by four-axis Japanese machine tool.The reasonable machining process and assemblyprocess ensure that the machine tool has small deformation and stable structureduring operation.
The press adopts 4 post guide and 2 plunger guide guiding structure,which canreasonably control the displacement deformation between workpieces.Togetherwith the forced oil supply lubrication system,the machine tool can minimize theslight themal deformation under long time operation and partial load condition,which can guarantee the long time high precision product processing.
Human-madine interface microcomputer control to acieve the visual managementof the operation,the number of products,machine status at aglance (the subsequentadoption of a central data processing system,a screen to know all machine workstatus,quality,quantity and other data).

Main Components
PRODUCT DETAIL

Main Motor

slider

Bolster

Scissor solenoid valve

safety light curtain

pressure gauge

oil cooler

feeder

distribution box

Press Products
PRODUCT DETAIL

H-360T Gantry Type Precision Stamping Press Machines (1)

H-360T Gantry Type Precision Stamping Press Machines (2)

H-360T Gantry Type Precision Stamping Press Machines (3)

Auxiliary Equipment
PRODUCT DETAIL

Electrical cabinet

Continuously delivers metal coil in precise steps to the press or processing equipment during stamping operations

Decoiler

Used for uncoiling and recoiling sheet metal from coils, ensuring a smooth and steady material feed

Straightener

Flattens uneven sheet or strip material by passing it through upper and lower rollers to achieve the required flatness

Scrap chopper

Collects and removes scrap generated during the stamping process to maintain clean and efficient operation
